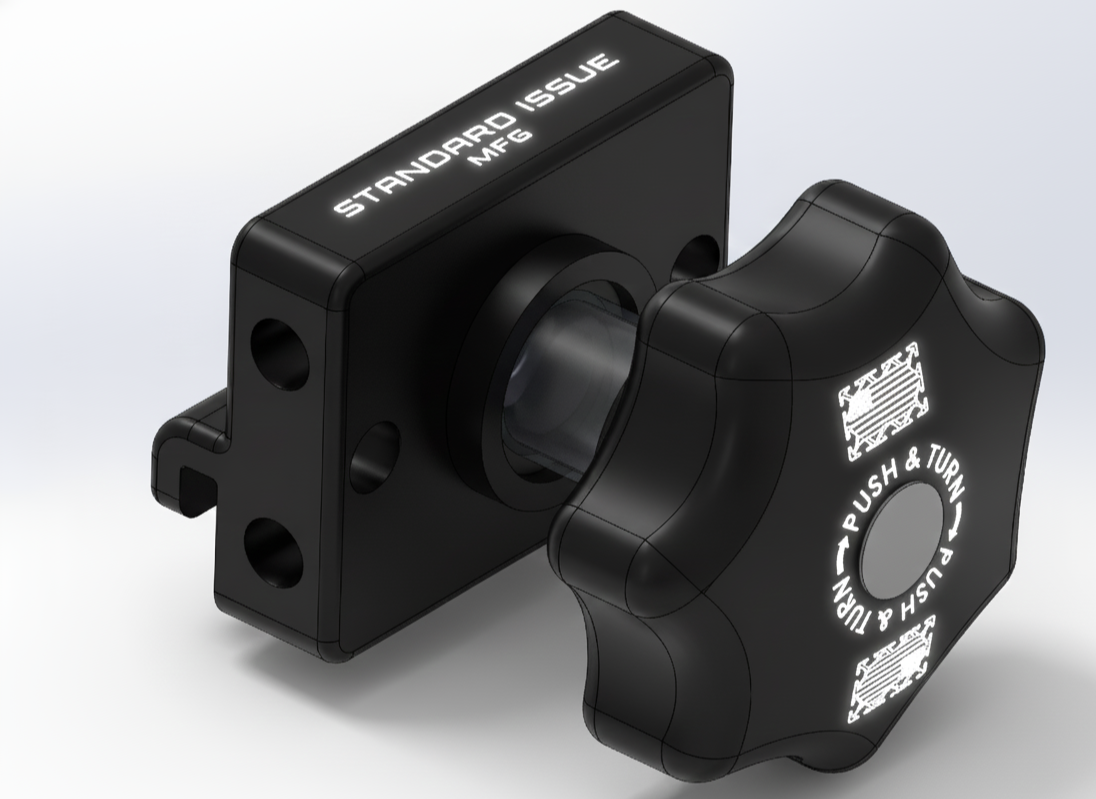

SlotLock Quick Connector

$19.00

Lead Time 2-3 Weeks

The SlotLock Quick Connector System is a fast, user-friendly way to build, expand, and customize your workshop or garage setup. Drop the connector in the slot, twist to coarse lock, and tighten for total security—then loosen whenever you need to reposition. With multiple locking states and six M5 mounting holes for accessories, The patent pending SlotLock gives you ultimate flexibility to create a storage and workspace solution that adapts to your needs.

Lead Time 2-3 Weeks

The SlotLock Quick Connector System is a fast, user-friendly way to build, expand, and customize your workshop or garage setup. Drop the connector in the slot, twist to coarse lock, and tighten for total security—then loosen whenever you need to reposition. With multiple locking states and six M5 mounting holes for accessories, The patent pending SlotLock gives you ultimate flexibility to create a storage and workspace solution that adapts to your needs.

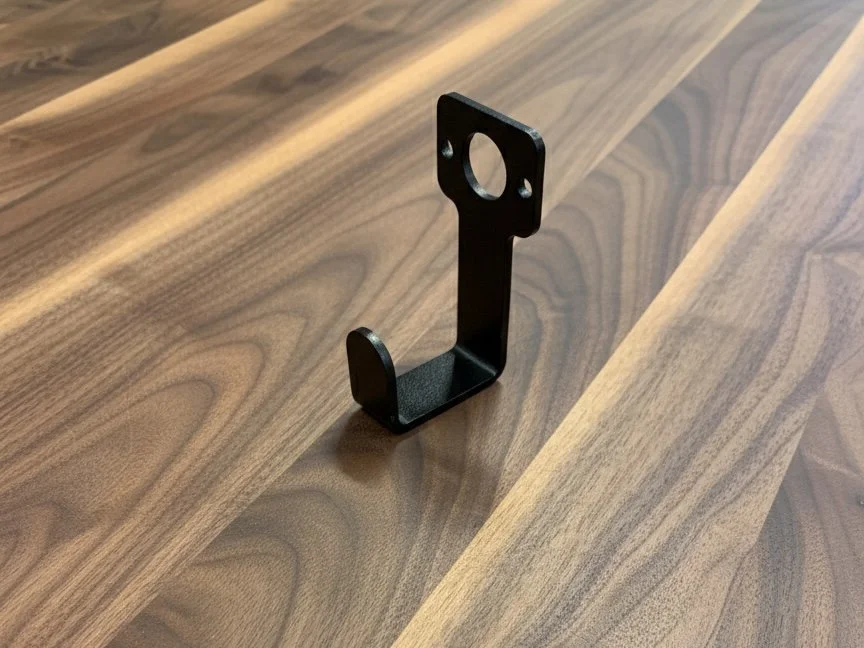

Small Hook
Small Hook
$7.50

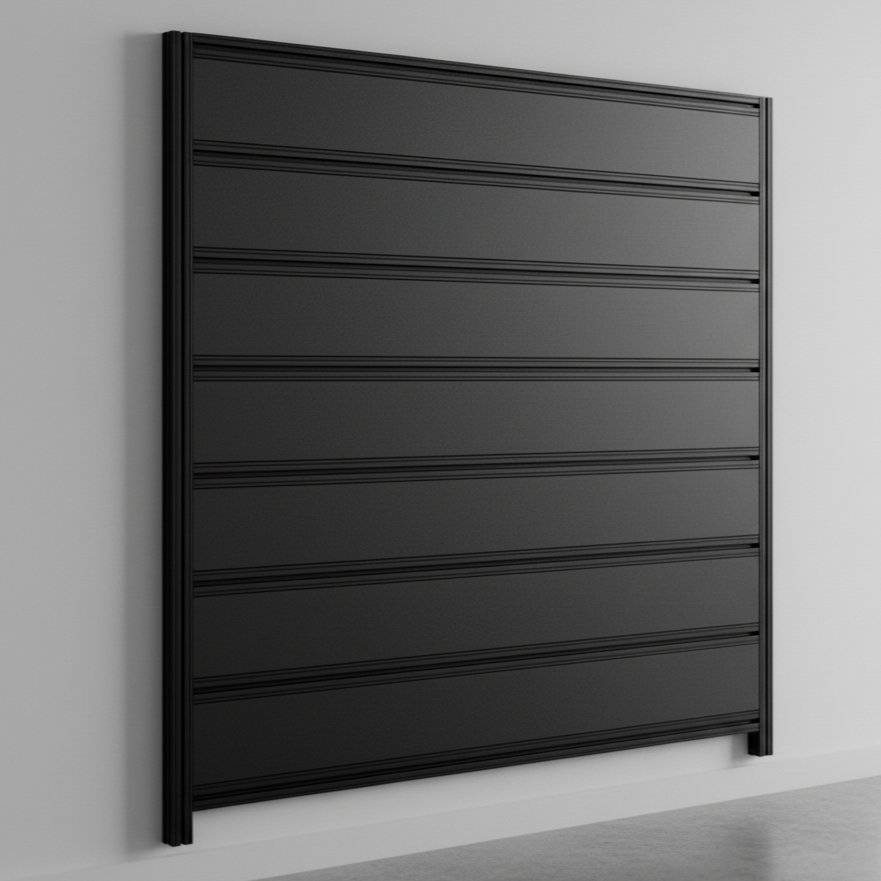

SlotWall 4'x4' Kit
SlotWall 4'x4' Kit
$295.00
Large Hook
Large Hook
$9.00

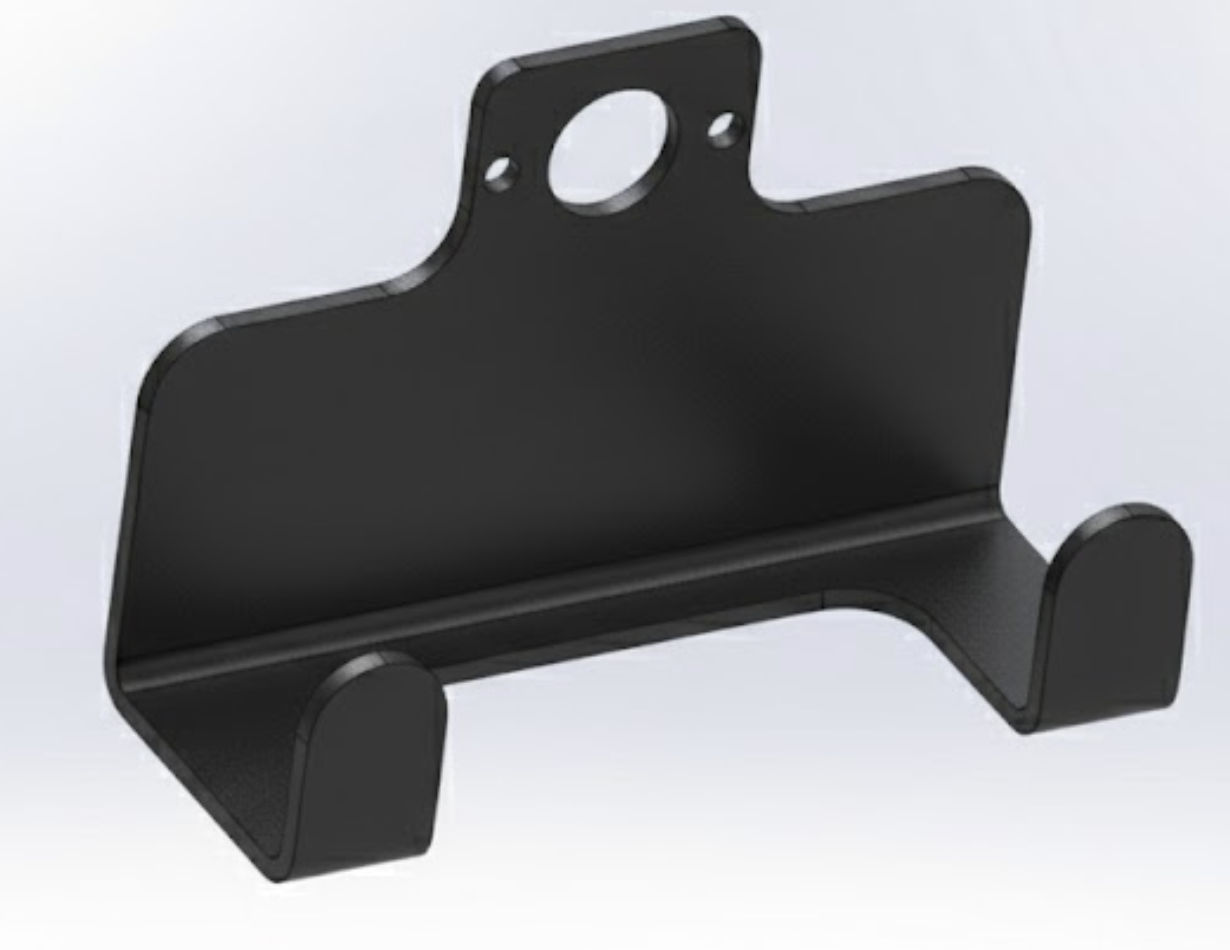

Double Hook
Double Hook
$10.50

Features

  • -6061 T6 Billet machined bracket and knob for maximum durability. Anodized black and laser marked to make it look as good as it functions. (Additional color anodized knobs coming soon)

  • With six M5 holes on three faces, you can attach accessories and create your own quick-connect solutions

  • Three Lock States for Maximum Versatility

    • Docked / Unlocked: The bracket’s integrated hooks guide the base into place and act as cleats to hold accessories securely, so you can let go while everything stays positioned.

    • Coarse Lock: Push and twist the knob to overcome the spring and engage the T-stud. The knob interacts with the T-stud through an o-ring interface, providing smooth stiction and holding the T-stud in the locked position. The POM retainer ensures smooth movement and long-term durability. In this state, the spring force alone keeps the bracket secure, which is sufficient for most applications. To disengage, simply twist the knob loose to release, letting the spring return the T-stud to its hidden position.

    • Total Lock: Tighten the knob further to apply more torque than the o-ring stiction, pulling the T-stud extremely tight for high-vibration environments such as mobile applications. Releasing is just as simple: loosen the knob until the o-ring stiction is met, and the spring returns the T-stud to its hidden position. Even then, the bracket remains held in place by the passive lead-in hooks.

What’s Included

  • 1x Standard Issue SlotLock Quick Connector

  • 2x M5x10 button head bolts
